フロントグリップナックル

66,220円(税6,020円)

購入数

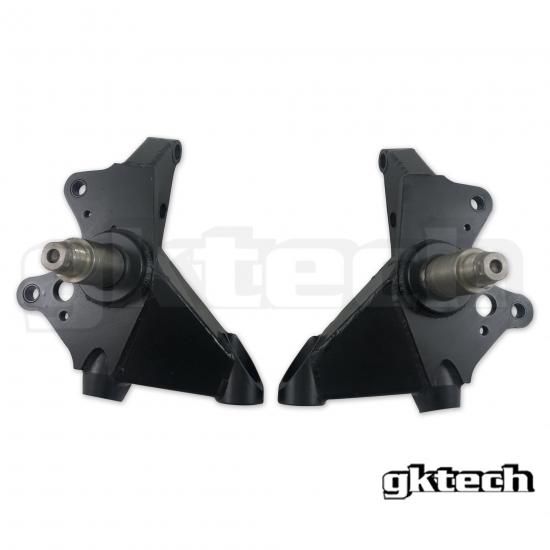

The GKTECH Grip S-chassis front drop knuckles have been developed with the learnings from our previous 2 versions of knuckles (of which over 400 sets have been sold) and we now present a light weight, sheet metal design after hundreds of hours of FEA (Finite Element Analysis) to improve the strength of the product but also keep the weight down. With OEM ackerman and steering arm length these are perfect for grip racers that aren't interested in an increase in steering angle that drifters require but with the benefit of an improvement in both roll center and bump steer correction.

- Ball joint height is lowered 50mm's for roll center and the steering mount lowered 64mm's for bump steer correction
- Lightweight (S13 version is 3.1kg and S14/S15 is 3.15kg)
- S13 and S14/S15 specific versions
- Provision for ABS sensor

NOTE: Due to the 64mm of bump steer correction some tie rods may interfere with the inside of your rim. This is entirely dependant on both the inside diameter of the rim and the length/type of tie rod that you are running however as a general rule a 17" rim or larger will be required.



They are best suited with our Super Lock LCA's, which when purchased in conjunction with these knuckles you receive 15% discount on both products.

Simply add both items to the cart and they will be discounted automatically!

The Super Lock LCA's can be seen here: https://jp.gktech.com/cnc-machined-4130-chromoly-super-lock-lower-control-arms/
