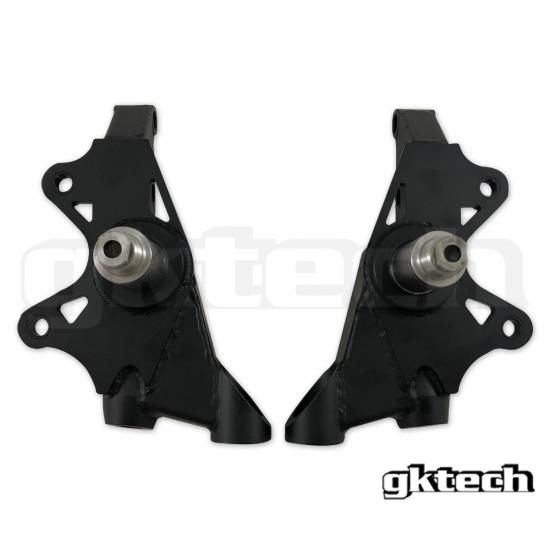

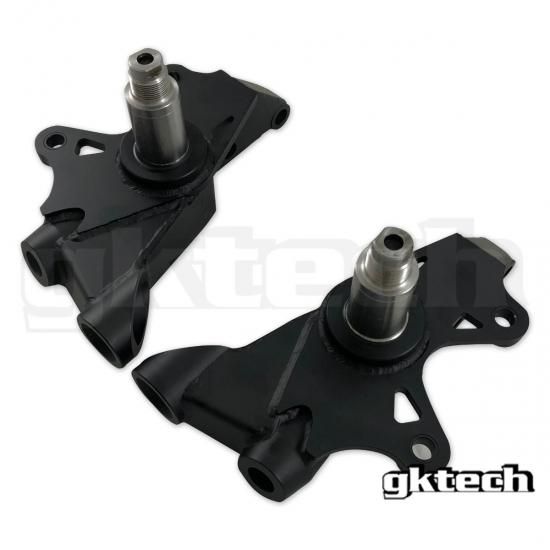

V4 Super Lock S-Chassis PRO front drop knuckles



The V4 GKTECH Super Lock S-chassis front drop knuckles have been developed with the learnings from our previous 3 versions of knuckles and we now present a lightweight, sheet metal design after hundreds of hours of FEA (Finite Element Analysis) to improve the strength of the product but also keep the weight down.

These bad boys are able to achieve around 70 degrees of steering lock with ease!

They are not for the faint hearted being our pro knuckle and feature offset caster trail and adjustable Ackerman, that's right, adjustable Ackerman so that you can really dial in your front end and be unstoppable

- Spindle height raised 50mm's for roll centre and bump steer correction
- Around 70 degrees of steering lock
- Lightweight (S13 version is 3.1kg and S14/S15 is 3.15kg)
- S13 and S14/S15 specific versions
- Offset caster trail
- Adjustable Ackerman

NOTE: Our offset steering rack extenders offer an additional 19mm's of steering rack travel and help to avoid steering bind. They are required to get maximum steering lock and as such, are recommended.
NOTE#2: Steering lock of 70 degrees quoted is based on having wheel clearance. If you have high offset wheels and your wheel hits the chassis then you may get less than this amount of steering lock.
NOTE#3: Will not work with some brake caliper adapter kits.
NOTE#4: Does NOT have a provision for ABS

Best suited to be used with our Super Lock LCA's which can be seen here
